  5. YHAU-CL/CH Single Effect Hot Water Absorption Chiller
YHAU CL CH product image
  • YHAU CL CH thumbnail

YHAU-CL/CH Single Effect Hot Water Absorption Chiller

30–2,000 TR (105-7,034 kW)

These units offer flexible design for combined heat and power (CHP) systems, comfort cooling or industrial-process cooling applications.

  • Innovative two-step evaporator and absorber design
  • Flexible and wide operating envelope
  • Utilizes waste heat as low as 70°C (158°F)
Back to Top

YHAU-CL/CH Single Effect Hot Water Absorption Chiller

  • Overview
  • Benefits
  • Features
  • Product Literature
  • Related Products

    Advancing Efficiency by Design

    YORK® YHAU-CL/CH Single-effect Hot Water Absorption Chillers offer a broad range of capacity from 30 to 2,000 TR. This unit uses an innovative two-step evaporator and absorber cycle that is more efficient and reliable than conventional designs. Its flexibility combined with a wide operating envelope utilizes waste heat as low as 70°C. Our world-class engineering and service organization helps to simplify start-up and chiller operation over the life of the system.
    Advancing Efficiency by Design

    Benefits

    Optimal Efficiency
    OPTIMAL EFFICIENCY

    YORK® YHAU-CL/CH Single-effect Hot Water Chiller uses an innovative two-step evaporator and absorber design for enhanced efficiency.

    Flexible Design
    FLEXIBLE DESIGN

    This unit is suited for a variety of steam pressures found in CHP systems, commercial cooling and industrial process applications.

    Lower Operating Cost
    LOWER OPERATING COST

    Reduced hot water flow rates and pumping energy help achieve lower costs of operation.

    Features

    • Innovative YORK® two-step evaporator and absorber design enhances absorption of the refrigerant into the concentrated solution, reducing overall pressure
    • Virtually eliminates crystallization risk and reduces the potential for corrosion
    • Control center with graphical animated LCD display offers past and present operational status, data recording and chiller safeties accessible at a touch
    • Innovative YORK® two-step evaporator and absorber design enhances absorption of the refrigerant into the concentrated solution, reducing overall pressure
    • Virtually eliminates crystallization risk and reduces the potential for corrosion
    • Control center with graphical animated LCD display offers past and present operational status, data recording and chiller safeties accessible at a touch
    • Lower temperature hot water source into the generator can be used to drive the absorption cycle for higher system efficiency
    • Can operate with lower hot water flow rates and reduced pumping energy
    • Isolation valves on the suction and discharge of the solution and refrigerant pumps allow quick and easy servicing of pumps, which typically have a 60,000-hour life
    • Lower temperature hot water source into the generator can be used to drive the absorption cycle for higher system efficiency
    • Can operate with lower hot water flow rates and reduced pumping energy
    • Isolation valves on the suction and discharge of the solution and refrigerant pumps allow quick and easy servicing of pumps, which typically have a 60,000-hour life

    Two Step Evaporator and Absorber

    YORK® YHAU-CL/CH Hot Water Chillers are uniquely designed with a two-step evaporator that has two pressure levels to divide the absorption process. The chilled water flows in tubes through the two evaporators while a concentrated lithium bromide solution is distilled in the absorber shell side in the opposite direction. This reduces the solution concentration and overall pressure, making the unit more efficient and reliable than conventional absorption chillers.
    See How It Works
    Two step graphic showing a YORK Chilled Water System evaporator and absorber.

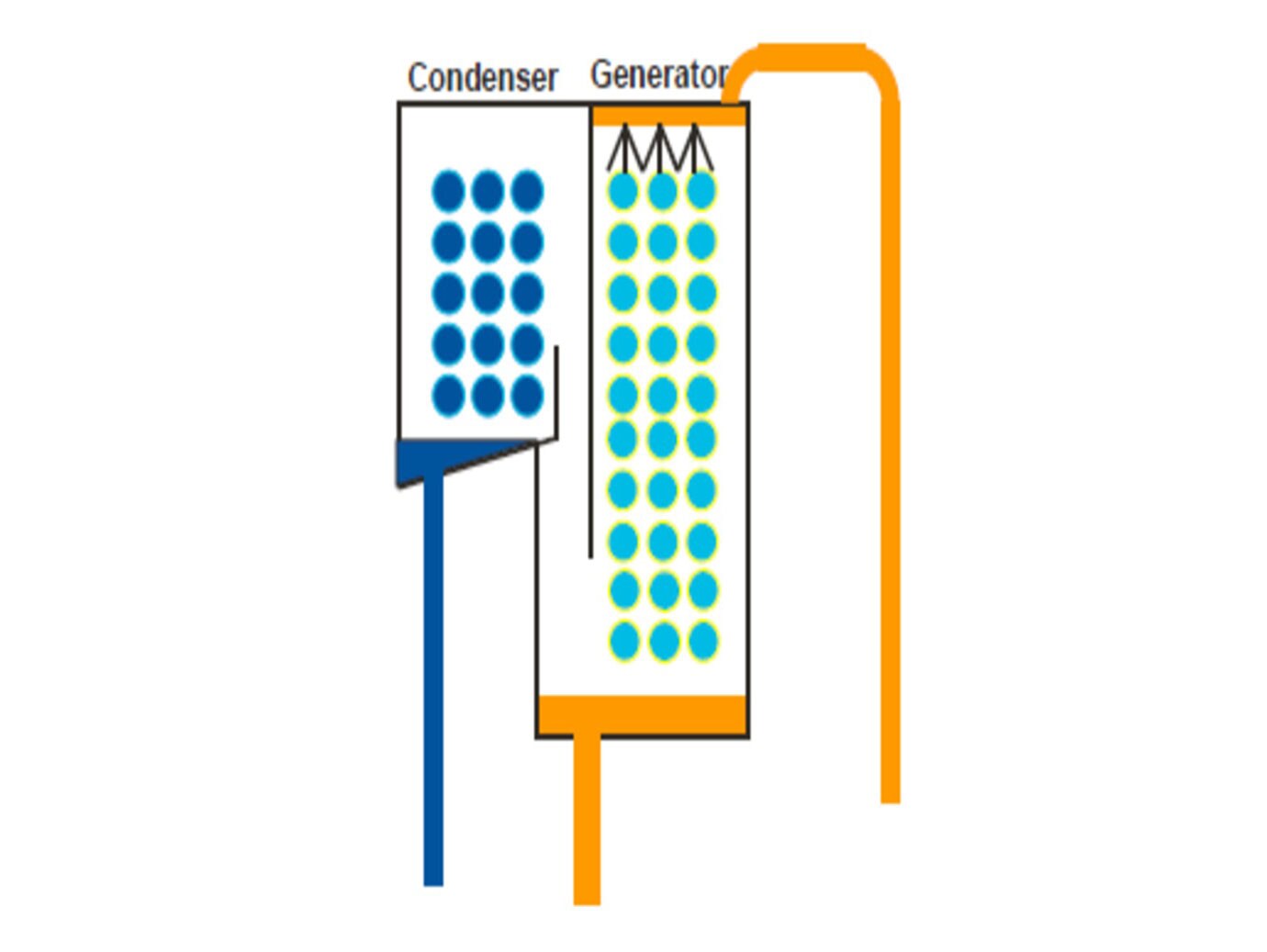

    Graphic displaying the falling film generator used in a YORK Absorption Chiller.

    Falling Film Generator

    The falling-film generator design provides superior heat transfer compared to a conventional flooded generator. This design also reduces the required amount of lithium-bromide solution to be circulated, decreasing start-up time from a cold start. Stainless steel tubes are adopted to prevent stress corrosion cracking and intermediate tube supports reinforce and extend unit life.

    Technical Resources

    Document Name
    Description
    Language
    Resource Type

    Brochure

    CHI_YORK YHAU-CL CH Absorption Hot Water Brochure (English)

    YORK® YHAU-CL CH Absorption Hot Water Brochure

    English Brochure
    VIEW
    No resource found for selected filter

    Back

    Next

    Related Products

    YHAU-CW Double Effect Steam Fired Absorption Chiller

    YHAU-CW Double Effect Steam Fired Absorption Chiller

    • Two-step evaporator and absorber design enhances absorption of the refrigerant into the concentrated solution, reducing overall pressure.
    • Parallel flow cycle enables lower lithium bromide solution concentrations, reducing crystallization risk and the potential for corrosion.
    • Variable-frequency drive (VFD) solution pump provides superior part-load performance to reduce steam consumption versus constant-speed pumps.
    YHAP-C Absorption Heat Pump

    YHAP-C Absorption Heat Pump

    • Innovative YORK® two-step evaporator and absorber design enhances absorption of the refrigerant into the concentrated solution, reducing overall pressure
    • Variable driving heat sources, such as jacket water from a gas engine, low- to high-pressure steam, direct-fired or exhaust gas
    • Two types of YHAP-C absorption heat pumps are available: a heat amplifier (Type I) driven by high-temperature, and heat transformer (Type II) driven by medium-temperature
    YHAU-CG/CA Double Effect Direct Fired Chiller/Heaters

    YHAU-CG/CA Double Effect Direct Fired Chiller/Heaters

    • Two-step evaporator and absorber design enhances absorption of the refrigerant into the concentrated solution, reducing overall pressure
    • Parallel flow cycle enables lower lithium bromide solution concentrations, reducing crystallization risk and the potential for corrosion
    • Variable-frequency drive (VFD) solution pump provides superior part-load performance to reduce gas/oil consumption versus constant speed pumps
