  5. YHAU-CW Double Effect Steam Fired Absorption Chiller
YHAU CW product image
  • YHAU CW thumbnail

YHAU-CW Double Effect Steam Fired Absorption Chiller

120-4,000 TR (422 TO 14,067 kW)

Enhanced efficiency and reliability for combined heat and power systems (CHP), commercial cooling and industrial process applications.

  • Innovative, two-step evaporator and absorber with parallel flow cycle
  • Flexible design and a wide operating envelope to handle lower steam pressures
  • Variable-frequency drive (VFD) solution pump
Back to Top

YHAU-CW Double Effect Steam Fired Absorption Chiller

  • Overview
  • Benefits
  • Features
  • Product Literature
  • Related Products

    Innovative Design for Superior Efficiency

    YORK® YHAU-CW Double-effect, Steam-fired Absorption Chillers offer a broad range of capacities from 120 to 4,000 TR. This unit uses an innovative, two-step evaporator and absorber cycle along with a parallel flow cycle to improve efficiency and reduce the risk of corrosion. The double-effect design combined with a wide operating envelope allows it to handle a wide variety of steam pressures. And world-class engineering and service help to simplify chiller operation over the life of the system.
    Innovative Design for Superior Efficiency

    Benefits

    Optimal Efficiency
    OPTIMAL EFFICIENCY

    The YHAU-CW Double-effect, Steam-fired Chiller uses an innovative, two-step evaporator and absorber design that enhances efficiency.

    Flexible Design
    FLEXIBLE DESIGN

    This unit is suited for a variety of steam pressures found in CHP systems, and commercial cooling and industrial process applications.

    Lower Cost Of Ownership
    LOWER COST OF OWNERSHIP

    World-class engineering and service teams reduce the cost of ownership by simplifying the operating cycle while providing added peace of mind.

    Features

    • Two-step evaporator and absorber design enhances absorption of the refrigerant into the concentrated solution, reducing overall pressure.
    • Variable-frequency drive (VFD) solution pump provides superior part-load performance to reduce steam consumption versus constant-speed pumps.
    • Control center with graphical, animated, LCD display offers past and present operational status, data recording and chiller safeties accessible at a touch.
    • Parallel flow cycle enables lower lithium bromide solution concentrations, reducing crystallization risk and the potential for corrosion.
    • High-temperature generator uses stainless steel tubes to maximize reliability by eliminating stress damage.
    • Isolation valves on the suction and discharge of the solution and refrigerant pumps allow quick and easy servicing of pumps, which typically have a 60,000-hour life.

    Two-step Evaporator and Absorber

    YORK® YHAU-CW Double-effect, Steam-fired Chillers are uniquely designed with a two-step evaporator that has two pressure levels to divide the absorption process. The chilled water flows in tubes through the two evaporators while a concentrated lithium bromide solution is distilled in the absorber shell side in the opposite direction. This reduces the solution concentration and overall pressure, making the unit more efficient and reliable than conventional absorption chillers.
    See How It Works

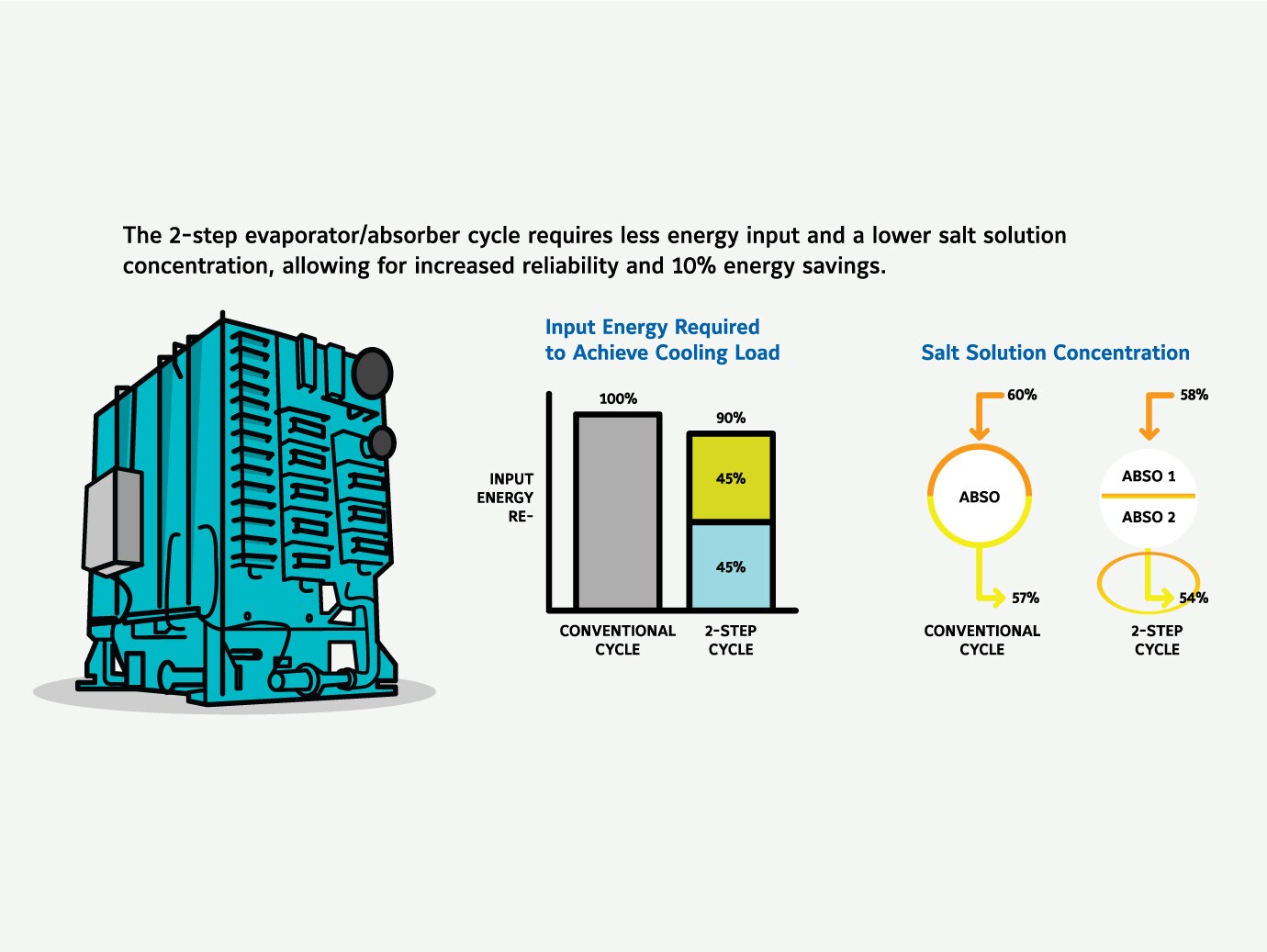

    Two step graphic showing a YORK Chilled Water System evaporator and absorber.

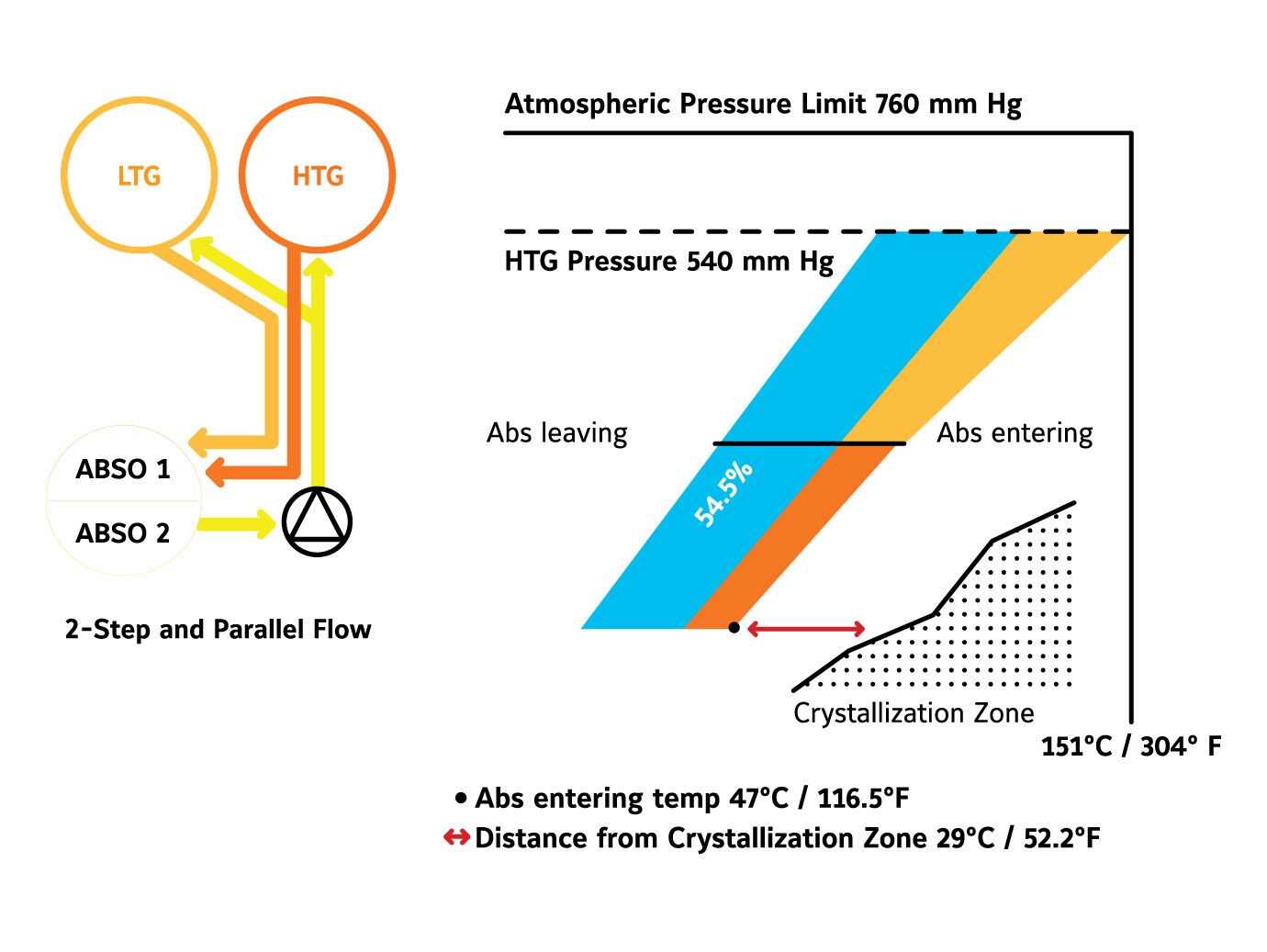

    Chart showing the parallel flow cycle and two-step design of Absorption Chillers.

    Parallel Flow Cycle

    The parallel flow cycle divides the solution flow between the low- and high-temperature generators into two parallel, balanced paths. Combining our two-step and parallel flow design, the unit can achieve a safer and more efficient operation at a much lower pressure than conventional series-flow designs. Thanks to this innovative design, the LiBr concentration is lower. This results in a relatively low grade for the driving heat source, providing a high coefficient of performance (COP).
    Learn More

    Technical Resources

    Document Name
    Description
    Language
    Resource Type

    Installation and Operations Manual (IOM)

    155.31-ICOM2.EN.UL (English)

    YHAU-CW Installation, Operation, and Maintenance Manual

    English Installation and Operations Manual (IOM)
    VIEW

    Brochure

    CHI_BRE_YORK Double-Effect Steam Fired absorption chiller (English)

    Double Effect Steam Fired Brochure

    English Brochure
    VIEW

    Data Sheet

    CHI_DS_Improve Absorption Chiller Performance (English)

    Advances in Absorption Technology

    English Data Sheet
    VIEW

    Webinar

    Incorporating Absorption Technology in District Cooling & Heating-20181101 1613-1 (English)

    Absorption Technology in District Cooling and Heating

    English Webinar
    VIEW
    No resource found for selected filter

    Back

    Next

    Related Products

    YHAU-C Single Effect Steam Absorption Chiller

    YHAU-C Single Effect Steam Absorption Chiller

    • Innovative YORK® two-step evaporator and absorber design enhances absorption of the refrigerant into the concentrated solution, reducing overall pressure and risks of crystallization.
    • Lower pressure steam into the generator can be used to drive the absorption cycle for higher system efficiency.
    • Solution plate heat exchanger optimizes efficiency by enabling effective heat transfer between the diluted and the concentrated lithium-bromide solutions.
    YHAU-CL/CH Single Effect Hot Water Absorption Chiller

    YHAU-CL/CH Single Effect Hot Water Absorption Chiller

    • Innovative YORK® two-step evaporator and absorber design enhances absorption of the refrigerant into the concentrated solution, reducing overall pressure
    • Lower temperature hot water source into the generator can be used to drive the absorption cycle for higher system efficiency
    • Virtually eliminates crystallization risk and reduces the potential for corrosion
    YST Steam Turbine Centrifugal Chiller

    YST Steam Turbine Centrifugal Chiller

    • Variable-speed driver delivers superior performance at both design and off-design conditions for higher efficiency
    • Application flexibility of the chiller handles a wide range of leaving- and entering-chilled-water temperatures, fluid flows and steam conditions
    • Modular configuration provides maximum flexibility, customization and compact footprint
    YHAU-CG/CA Double Effect Direct Fired Chiller/Heaters

    YHAU-CG/CA Double Effect Direct Fired Chiller/Heaters

    • Two-step evaporator and absorber design enhances absorption of the refrigerant into the concentrated solution, reducing overall pressure
    • Parallel flow cycle enables lower lithium bromide solution concentrations, reducing crystallization risk and the potential for corrosion
    • Variable-frequency drive (VFD) solution pump provides superior part-load performance to reduce gas/oil consumption versus constant speed pumps
