  5. YVFA Free Cooling Variable Speed Screw Chiller
YVFA product image
  • YVFA thumbnail

YVFA Free Cooling Variable Speed Screw Chiller

150-500 TR (525-1,750 kW)

The YORK® YVFA is a free-cooling screw chiller that minimizes operating cost by combining superior engineering and technology with a packaged design that's simple to own and operate.

  • YORK® variable-speed drive
  • Air-to-liquid, free-cooling coils
  • Intelligent controls optimize energy
Back to Top

YVFA Free Cooling Variable Speed Screw Chiller

  • Overview
  • Benefits
  • Features
  • Product Literature
  • Related Products

    Simple to Own and Operate

    Advanced technologies, including a variable speed drive compressor, energy optimized hybrid cooling mode and air-to-liquid free cooling coils designed by our heat transfer experts, are intelligently controlled to maximize efficiency year-round.
    Simple to Own and Operate

    Benefits

    Efficiency
    EFFICIENCY

    Hybrid mode combines the best technologies to boost part-load efficiency.

    Simplicity
    SIMPLICITY

    Packaged controls, advanced touchscreen display, YORK® Chiller Access Manager and single-point convenience simplify operation.

    Reliability
    RELIABILITY

    Get assured performance from the variable-speed leaders who have over three generations of expertise.

    Fast Payback
    FAST PAYBACK

    Payback possible in as little as two years – and we can prove it.

    Features

    • Packaged controls for single-point convenience to easily accommodate process or building changes
    • ISASecure® certified YORK® Chiller Access Manager with enhanced security features provides peace of mind that chiller data and operations are secure
    • Variable-frequency inverter technology enables a zero-inrush soft start and a high-displacement power factor across the entire operating range
    • Performance is assured by AHRI certification, the first for an air-cooled screw chiller with free-cooling
    • Open-loop and closed-loop design solutions for different building systems
    • Advanced touchscreen display provides faster, easier navigation compared to legacy 2-line displays
    • Intelligent controls also optimize the balance between using fans to move air over the free-cooling coils
    • Quick Start option achieves full load after a power loss in four minutes or less
    • Integrated air-to-liquid, free-cooling coils, designed by our heat transfer experts, reduce or eliminate the need for mechanical cooling when conditions allow

    Quick Start

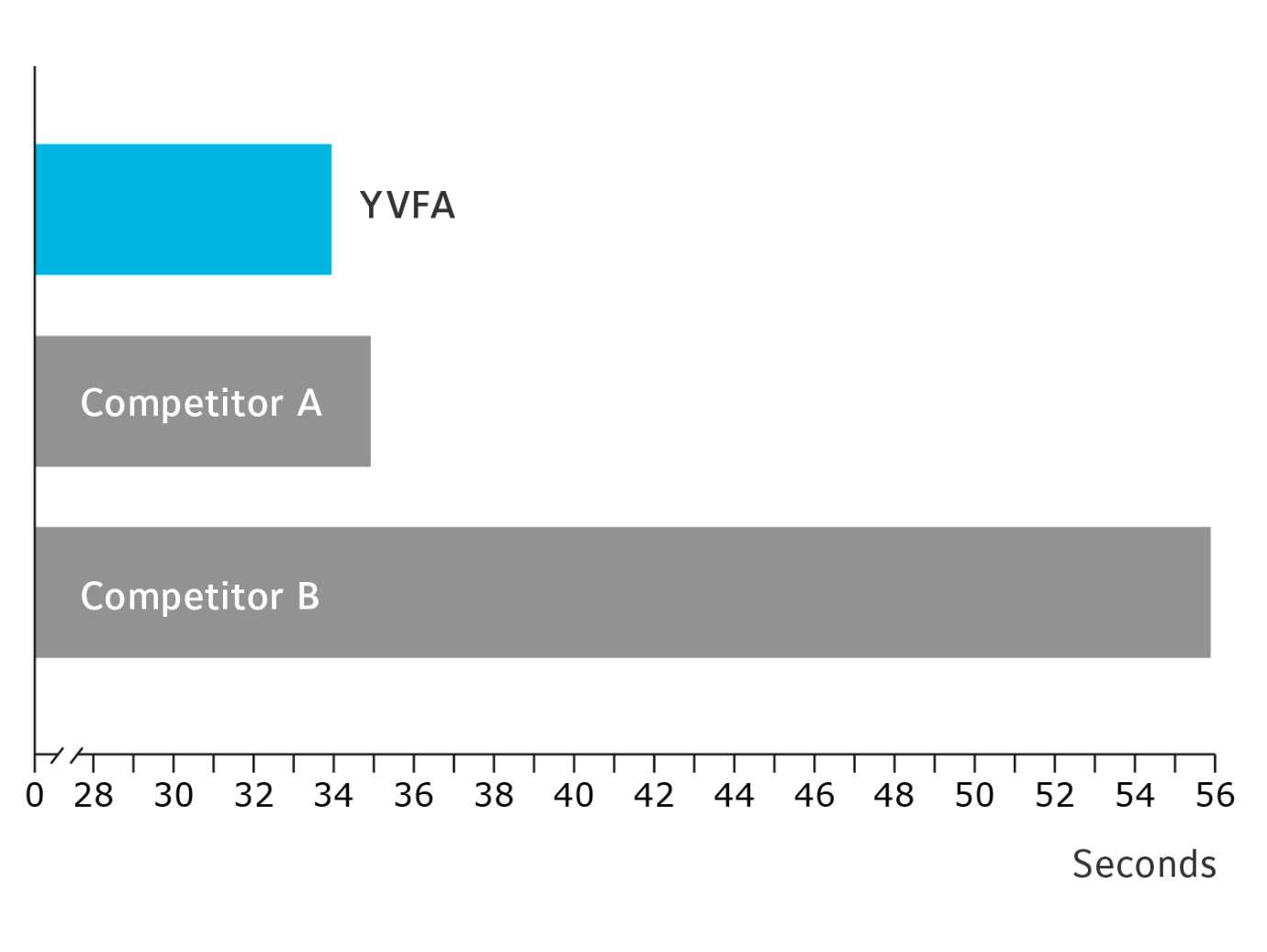

    After power is interrupted, it can take a standard chiller up to 10 minutes to restart. But with the Quick Start feature, YVFA chillers can restart within seconds after power is restored. YVFA chillers feature an industry-leading compressor restart (upon power being restored) of 34 seconds.

    Because YVFA chillers contain a variable-speed drive, there is no inrush of current. As a result, all compressors can be started together. This allows a faster ramp-up to full capacity than possible with a typical chiller.
    Learn About Quick Start
    YORK YVFA Variable Speed Screw Chiller pictured with it's unique Hybrid Mode technology

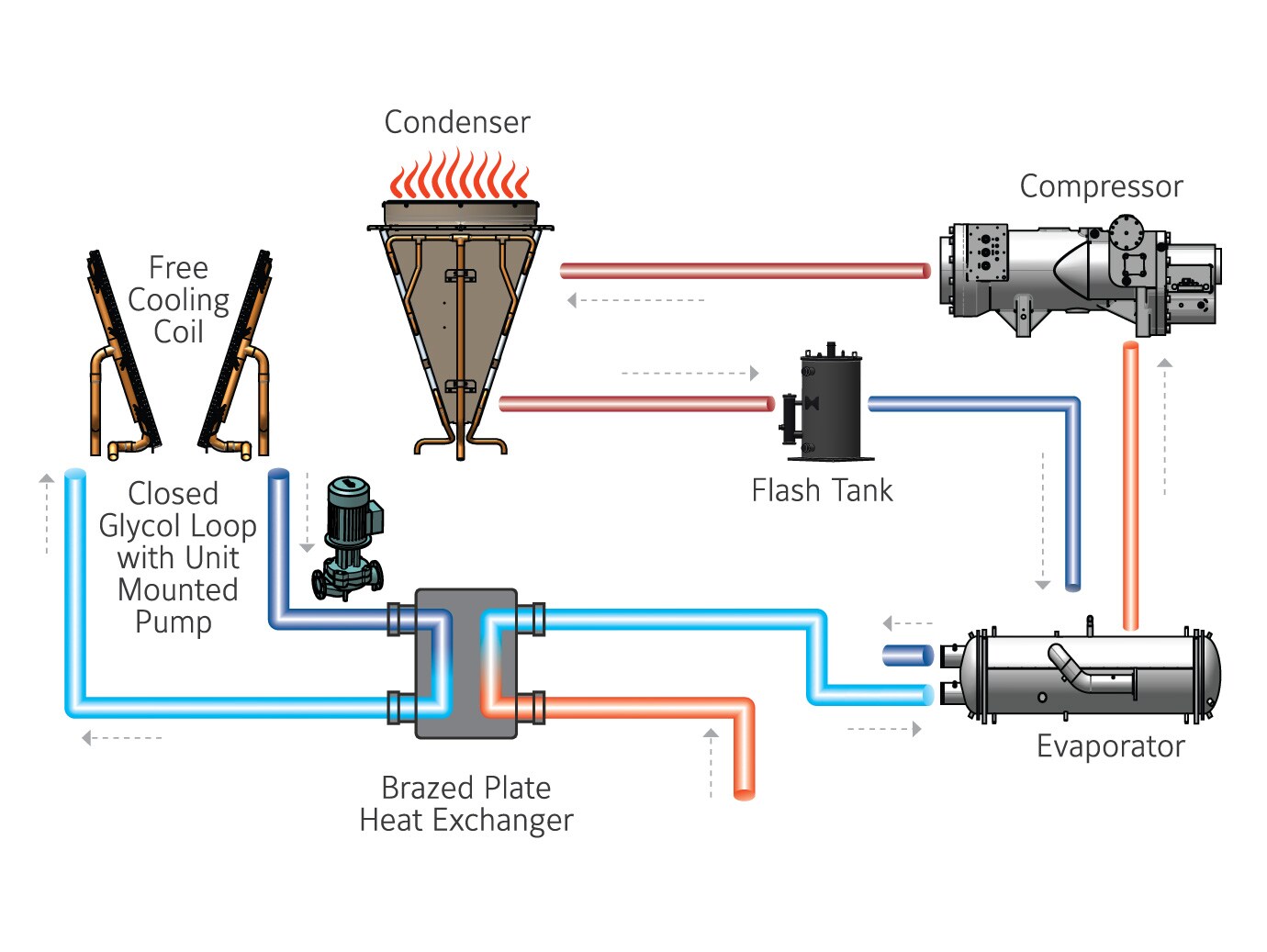

    Hybrid Mode Technology

    Traditional free-cooling chillers use fixed-speed compressors that simply shut off when ambient temperatures are low enough. But this only saves energy when the compressors are completely shut off. Johnson Controls has pioneered a unique Hybrid Mode technology that optimizes energy use year-round. Using free-cooling coils to reduce the mechanical cooling load at a much higher temperature, the VSD compressors reduce speed and energy use more of the year for long-term performance and efficiency.

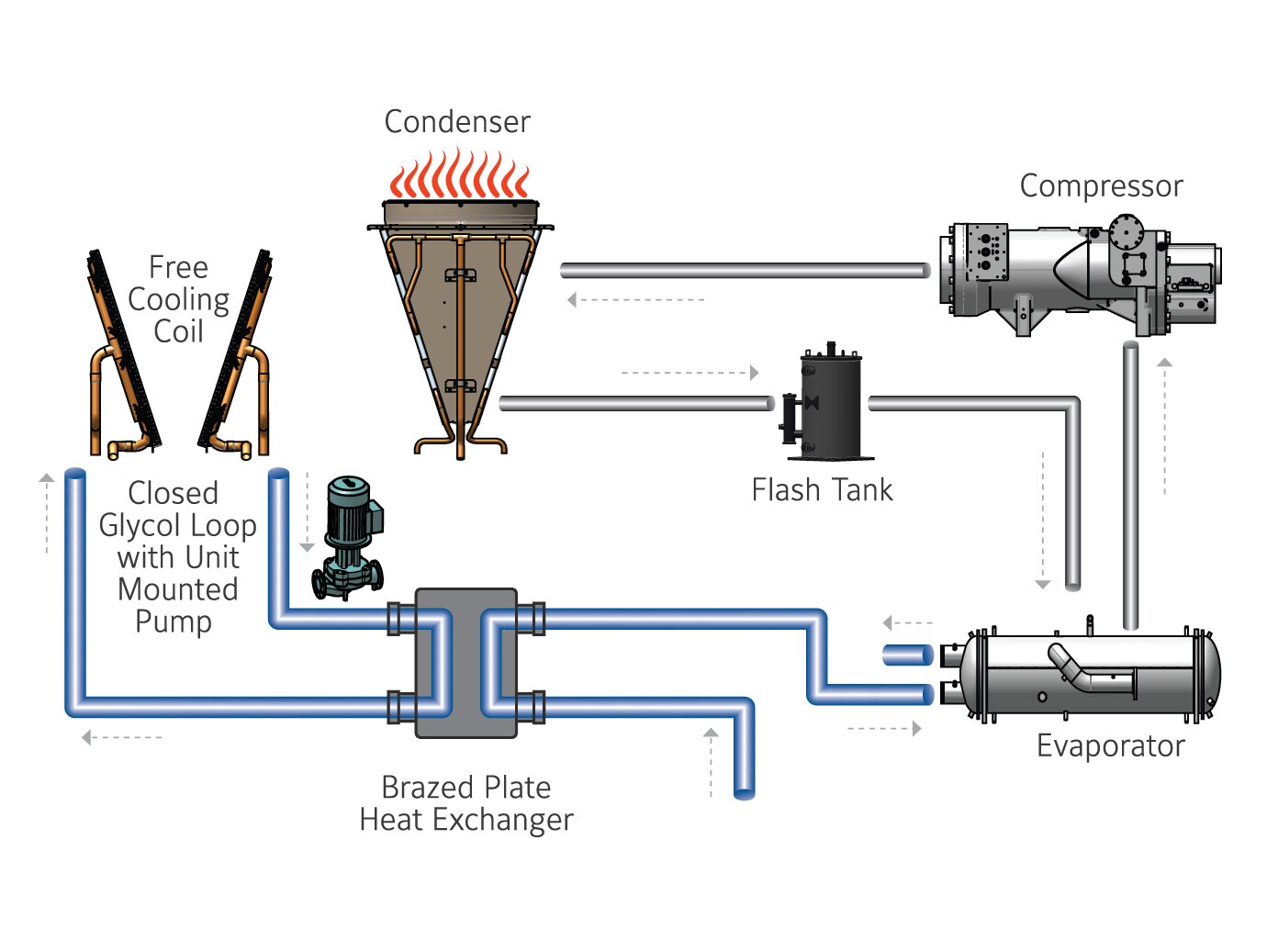

    Free-cooling Technology

    YVFA free-cooling, air-cooled chillers deliver the industry’s highest leaving water temperature to provide more tonnage in the same footprint as competing systems. And intelligently controlled free-cooling bypass valves reduce pump energy when free-cooling is not beneficial. These technologies enable the chiller to move from mechanical to hybrid to free-cooling modes automatically, further minimizing energy use.
    YORK YVFA Variable Speed Screw Chiller is equipped with free-cooling technology, minimizing energy use and maximizing efficiency.

    CHILLER SECURITY

    The YORK® YVFA Air-cooled Chiller has received ISASecure® CSA certification through Exida®, meeting rigorous international standards for cybersecurity in industrial automation and control systems. This certification demonstrates our commitment to helping facility teams safeguard critical infrastructure against evolving threats.
    • Certification to the ISA/IEC 62443-4-2 standard provides assurance that Johnson Controls and the YORK® brand adhere to stringent ISASecure technical security requirements for IACS components.

    • Certification to the ISA/IEC 62443-4-1 standard provides assurance that Johnson Controls and the YORK® brand adhere to stringent ISASecure development lifecycle requirements.

    The YORK® YVFA Air-cooled Chiller is one of many chiller models from Johnson Controls equipped with the Chiller Access Manager to receive ISASecure certification from Exida®.The YORK® Chiller Access Manager provides YORK® YVFA Air-cooled Chiller owners and operators with control and visibility about who is operating, maintaining and servicing their chiller – ensuring protection of an asset that is critical to facility operation.

    Learn About Chiller Access Manager

    Technical Resources

    Document Name
    Description
    Language
    Resource Type

    Brochure

    YORK® YVFA Free-Cooling Chiller (English)

    YVFA Brochure

    English Brochure
    VIEW

    Engineering Guide

    201.31-EG1 (English)

    YVFA Engineering Guide

    English Engineering Guide
    VIEW

    Flyer

    CHI_FLY_YVFA Free Cooling Variable Speed Screw Chiller (English)

    YVFA Annual Energy Savings Report Flyer

    English Flyer
    VIEW

    Case Study

    CHI_CS_FriendshipHaven (English)

    Case Study – Friendship Haven Senior Community Cuts Energy Cost with YVFA

    English Case Study
    VIEW

    Brochure

    line card_air-cooled chillers and condesing units (English)

    Air-Cooled and Condensing Units Line Card

    English Brochure
    VIEW

    Video

    YVFA Introduction (English)

    Video – YVFA Free-cooling Technology Yields Savings

    English Video
    VIEW

    Brochure

    sg_yvaa-yvfa-chiller-chiller-quick-start (English)

    YVAA/YVFA Quick Start Brochure

    English Brochure
    VIEW

    White Paper

    CHI_Sound Reduction Solutions_WP (English)

    White Paper – Sound Reduction Solutions

    English White Paper
    VIEW
    No resource found for selected filter

    Back

    Next

    Related Products

    YVAA Variable Speed Drive Screw Chiller

    YVAA Variable Speed Drive Screw Chiller

    • Patented YORK® liquid-cooled, variable-speed drive technology
    • Screw compressors designed and manufactured by Johnson Controls
    • Patented, stepped VI (volume ratio) technology to match compressor operation to conditions
    YCIV Variable Speed Drive Screw Chiller

    YCIV Variable Speed Drive Screw Chiller

    • Integrated compressor VSD standard with 50% fewer moving parts
    • Excellent capacity control, high power factor and soft start
    • Easy access to display and control features via control display access door
    YLAA Scroll Chiller

    YLAA Scroll Chiller

    • Industry-leading IPLV with variable-speed drive fans
    • Optimized compressor for better part-load efficiency
    • Building automation system (BAS) communications
    YCAL Scroll Chiller

    YCAL Scroll Chiller

    • Standard ambient range up to 125°F
    • Optional hot-gas bypass
    • Optional factory-mounted hydronic-pump kit
