3-12.5T Pro A/C & HP product image
  • 3-12.5T Pro A/C & HP thumbnail

YORK® Sun™ Pro Packaged Rooftop Units

3-12.5 Tons

YORK® Sun™ Pro Rooftop Units are service-friendly and life-cycle cost optimized, with the most complete range of features and options in this tonnage size.

  • A/C and heat pump models in convertible airflow configuration
  • Standard (up to 12.2 EER/14.8 IEER), high (up to 12.2 EER/15.2 IEER) and ultra-high efficiency models (up to 14.0 EER/ 21.2 IEER)
  • Separate hot gas reheat models
Back to Top

YORK® Sun™ Pro Packaged Rooftop Units

  • Overview
  • Benefits
  • Features
  • Product Literature

    Superior Efficiency Designed With the Professional in Mind

    YORK® Sun™ Pro Rooftop Units come standard with features like toolless, hinged access panels and a slide-out blower for easier service. Ultra-high-efficiency models are the most efficient, dual-circuit units on the market, with continual operation in the event of an issue and providing significant operational cost savings. Built with flexible, convertible airflow features to help reduce cutting sheet metal in the field, YORK® Sun™ Pro units are manufactured for ease of service, too.
    Superior Efficiency Designed With the Professional in Mind

    Benefits

    Reduced Operational Costs And Exceptional Efficiency
    REDUCED OPERATIONAL COSTS AND EXCEPTIONAL EFFICIENCY

    Ultra-high efficiency models achieve 64% greater efficiency than legacy models, and meet new energy requirements.

    Reliable Operation
    RELIABLE OPERATION

    Two independent refrigeration circuits add built-in redundancy for greater peace of mind.

    American Quality
    AMERICAN QUALITY

    Designed, engineered and assembled in the United States at the Johnson Controls Rooftop Center for Excellence in Norman, OK.

    Features

    • Units meet or exceed ASHRAE 90.1-2016 and are ENERGY STAR® qualified
    • Convertible airflow design doesn't require panel cutting or an accessory panel
    • Smart Equipment controls aid in reliability and ease of use
    • Durable, powder-painted, galvanized steel finish meets 750-hour salt-spray test demands
    • Compressor is internally protected against high pressure and temperature
    • Permanently lubricated condenser and evaporator fan motor bearings don't require annual maintenance
    • Condenser coils constructed of microchannel aluminum tubing and aluminum fins provide durability and efficient, long-lasting operation
    • Constant volume (CV), multiple speed (IntelliSpeed™) and a variable air volume (VAV) option featuring a variable frequency drive (VFD) are all available
    • Easy power and control wiring for reduced installation time and costs
    • Exclusive optional Continuous Reset Single Zone (CRSZ) control
    • Wide range of indoor airflow options using belt-drive blowers are available
    • Permanently attached, full-perimeter base rails provide a solid unit foundation and forklift access
    • Heat exchangers use corrosion-resistant, aluminized steel tubular construction for durability and a long service life
    • Complete line of field-installed accessories are available, including propane and high-altitude conversion kits
    • Evaporator coils constructed with grooved copper tubes and enhanced aluminum fins improve heat transfer

    Verasys Controls

    YORK® Sun™ Pro Packaged Rooftop Units are Verasys enabled, making it easy to improve comfort, efficiency and operating costs. Verasys offers remote connectivity for secure access anytime, anywhere. BACnet®-based, it connects seamlessly to Smart Equipment throughout your facility via wireless compatibility.

    Learn more about Verasys

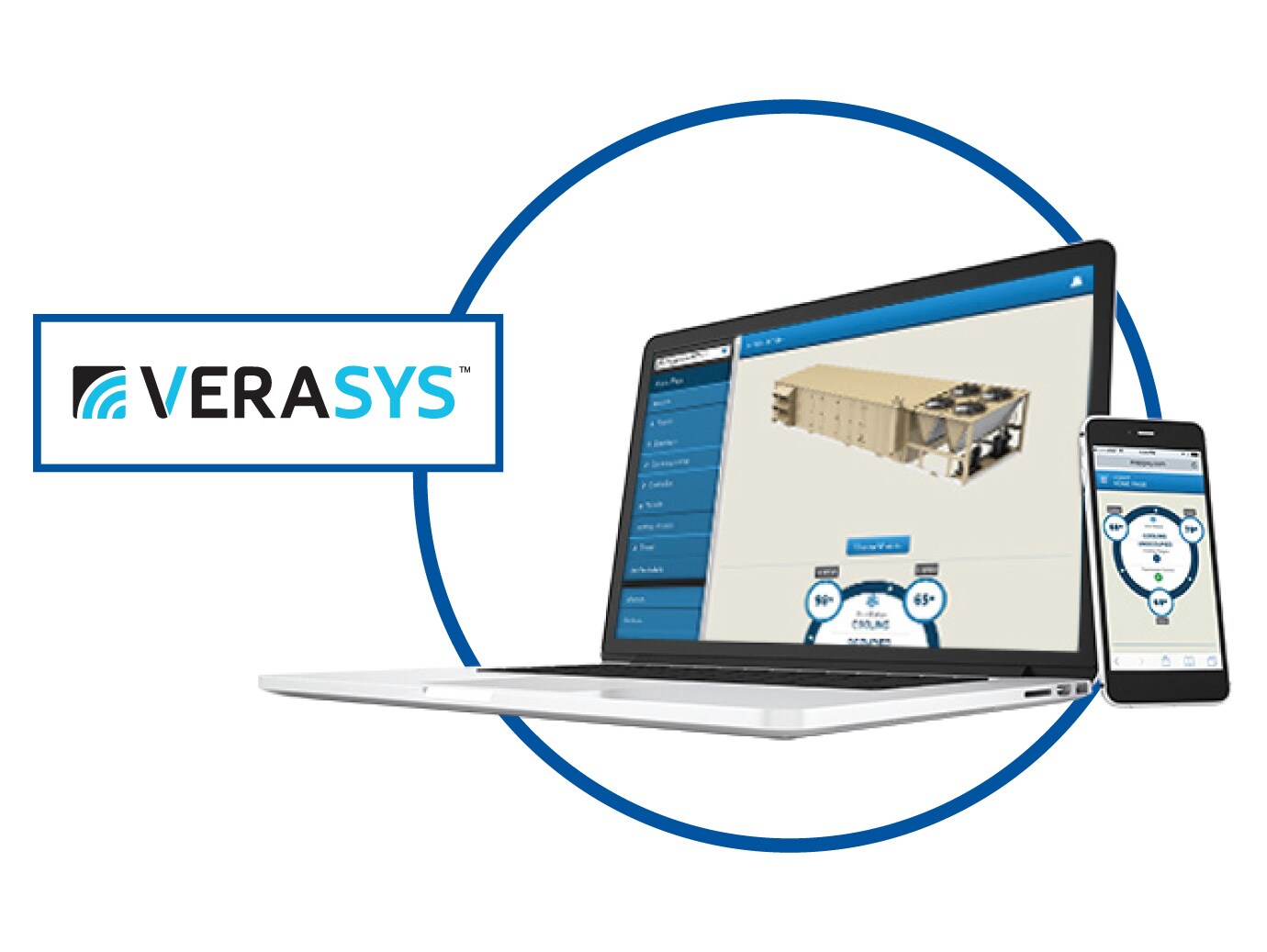

    Verasys controls showing the configuration and performance of a building's YORK packaged rooftop unit.

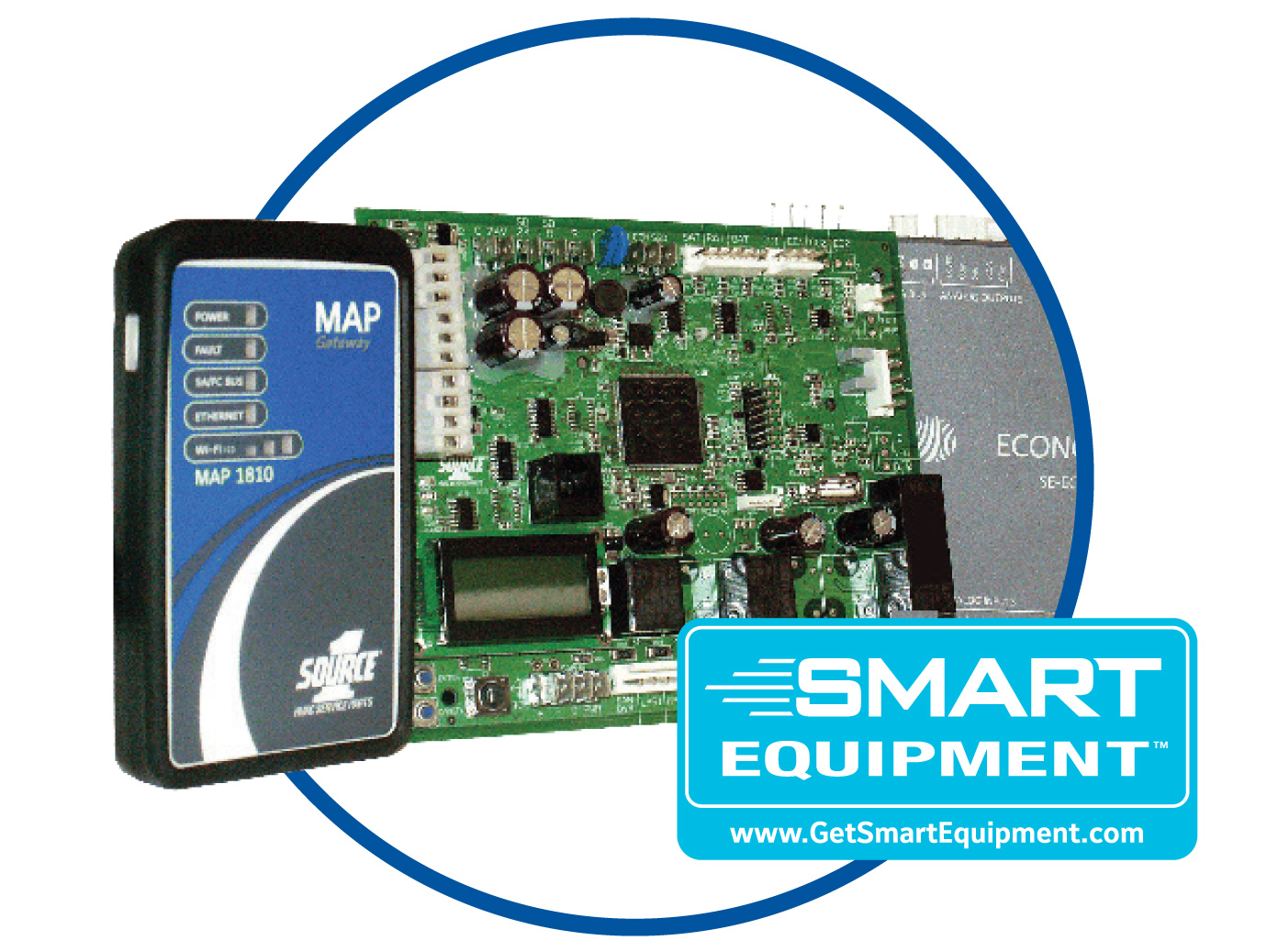

    Smart Equipment control board and components for YORK packaged rooftop unit

    Smart Equipment

    Every YORK® Sun™ Pro unit comes standard with next-generation Smart Equipment and can seamlessly connect to a controls systems and self-discover other Smart Equipment. On-board controls support cloud-based data analytics, including fault detection, to support proactive maintenance and minimize downtime.

    Smart Equipment helps maximize control for greater efficiency, extended equipment life and reduced operating costs.

    Mobile Access Portal (Map)

    The optional MAP gateway with Wi-Fi® hotspot provides access to commissioning, configuration and maintenance logs using a smart device for fewer trips to the job site or roof to diagnose issues.

    A Mobile Access Portal (MAP) gateway providing access to a YORK packaged rooftop unit via a smart device.

    Technical Resources

    Document Name
    Description
    Language
    Resource Type

    Brochure

    dx2206001_core_pro brochure update_york_digital (English)

    YORK® SUN™ CORE AND YORK® SUN™ PRO ROOFTOP UNITS 3-12.5 Tons

    English Brochure
    VIEW

    Technical Guide

    5167824-ytg-p-0323 (English)

    XP078 to 150 Pro R-410A Single Package High Efficiency Heat Pumps (March 2023)

    English Technical Guide
    VIEW

    Technical Guide

    5167821-ytg-q-0623 (English)

    ZT/ZB Series UHE/3-Stage Pro R-410A Single Package Unit (June 2023)

    English Technical Guide
    VIEW

    Technical Guide

    6046560-ytg-d-0623 (English)

    Pro ZJ Series 3 to 12.5 ton Single Package Units (June 2023)

    English Technical Guide
    VIEW
