How Absorption Chilling Systems Work
Unlike conventional chillers, absorption chillers use waste heat from other processes to chill water and distribute it for HVAC needs.
Learn How They WorkAbsorption Chillers
Where sustainability meets reliability
Absorption Cooling Systems
Achieving building efficiency and meeting environmental demands requires innovative chiller options. YORK® absorption chillers deliver.
Advantages of Absorption Chillers
YORK® absorption chillers include the broadest product range, including small, modular and large systems. Additionally, a variety of driving heat sources provides greater application diversity. And the benefits don’t end there.
INNOVATIVE AND EFFICIENT
Our innovative absorption chiller technology includes a two-step evaporation and absorption cycle combined with a parallel flow to reduce the risk of crystallization.
PROVEN RELIABILITY
Since 1960, YORK® has led the industry in absorption chiller technology with the most advanced and diverse product portfolio.
SUSTAINABILITY
If you’re interested in absorption chiller comparison, check this out. YORK® absorption chillers use water as the refrigerant, which means zero ozone depletion and global warming potential.

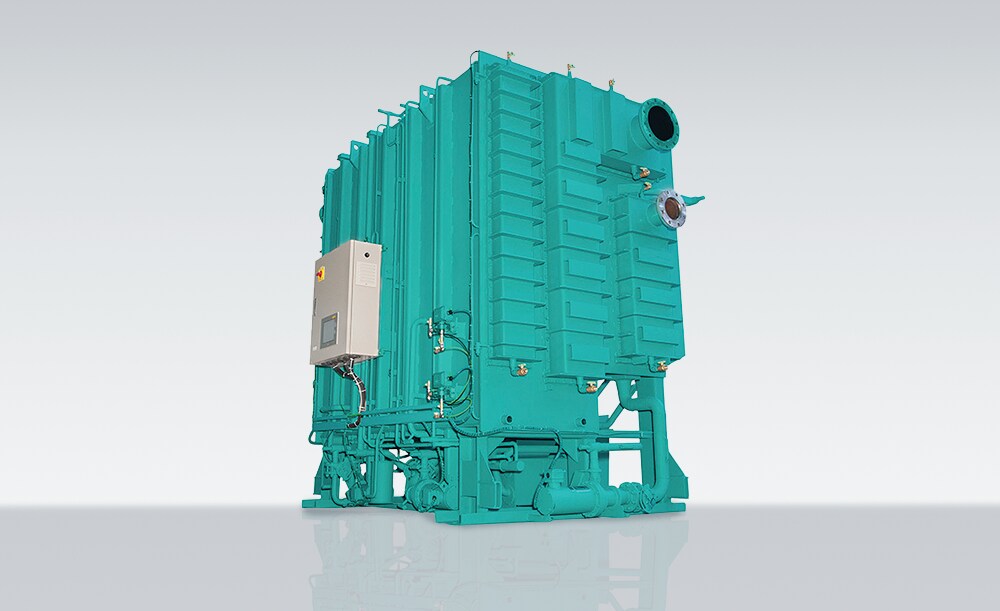

YORK® Absorption Chillers and Heat Pumps
Growing environmental and energy conservation goals require an innovative absorption chiller design — something only a global leader in absorption chiller technology can deliver. As an industry leader with decades of experience in this category, YORK® absorption chillers and heat pumps offer the most advanced and diverse portfolio suitable for a variety of global applications.
Products
- Coefficient of performance (COP) of 1.23 based on lower heating value (LHV) with a turndown ratio from 100% to 25%.
- Ambient temperature range of 5°C/41°F to 40°C/104°F with 10-90% relative humidity.
- The space-efficient design of the unit simplifies installation through forklift loading or via an emergency/service elevator.
- Innovative YORK® two-step evaporator and absorber design enhances absorption of the refrigerant into the concentrated solution, reducing overall pressure
- Variable driving heat sources, such as jacket water from a gas engine, low- to high-pressure steam, direct-fired or exhaust gas
- Two types of YHAP-C absorption heat pumps are available: a heat amplifier (Type I) driven by high-temperature, and heat transformer (Type II) driven by medium-temperature
- Two-step evaporator and absorber design enhances absorption of the refrigerant into the concentrated solution, reducing overall pressure
- Parallel flow cycle enables lower lithium bromide solution concentrations, reducing crystallization risk and the potential for corrosion
- Variable-frequency drive (VFD) solution pump provides superior part-load performance to reduce gas/oil consumption versus constant speed pumps
- Innovative YORK® two-step evaporator and absorber design enhances absorption of the refrigerant into the concentrated solution, reducing overall pressure
- Lower temperature hot water source into the generator can be used to drive the absorption cycle for higher system efficiency
- Virtually eliminates crystallization risk and reduces the potential for corrosion
- Two-step evaporator and absorber design enhances absorption of the refrigerant into the concentrated solution, reducing overall pressure.
- Parallel flow cycle enables lower lithium bromide solution concentrations, reducing crystallization risk and the potential for corrosion.
- Variable-frequency drive (VFD) solution pump provides superior part-load performance to reduce steam consumption versus constant-speed pumps.
- Innovative YORK® two-step evaporator and absorber design enhances absorption of the refrigerant into the concentrated solution, reducing overall pressure and risks of crystallization.
- Lower pressure steam into the generator can be used to drive the absorption cycle for higher system efficiency.
- Solution plate heat exchanger optimizes efficiency by enabling effective heat transfer between the diluted and the concentrated lithium-bromide solutions.
